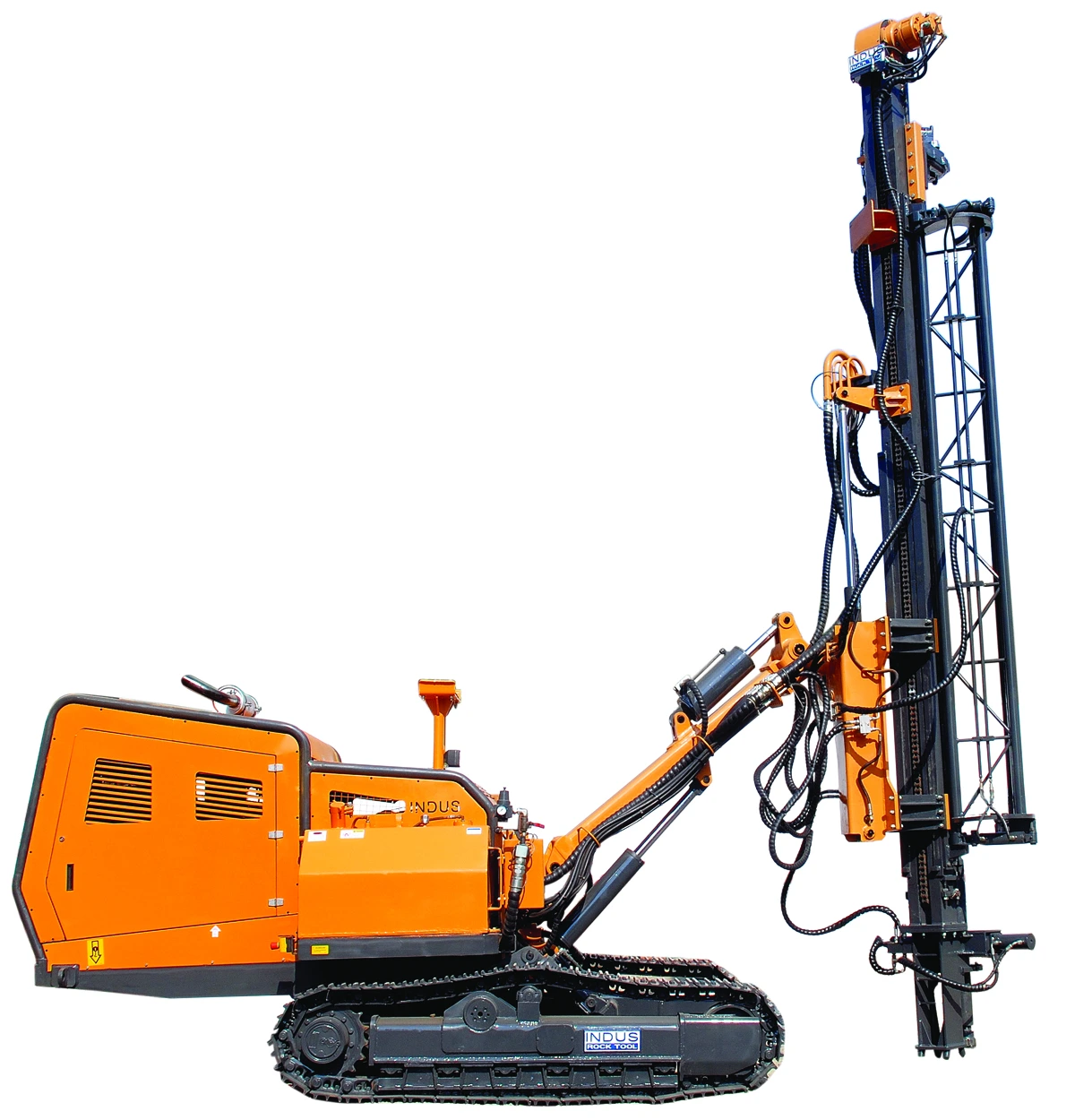

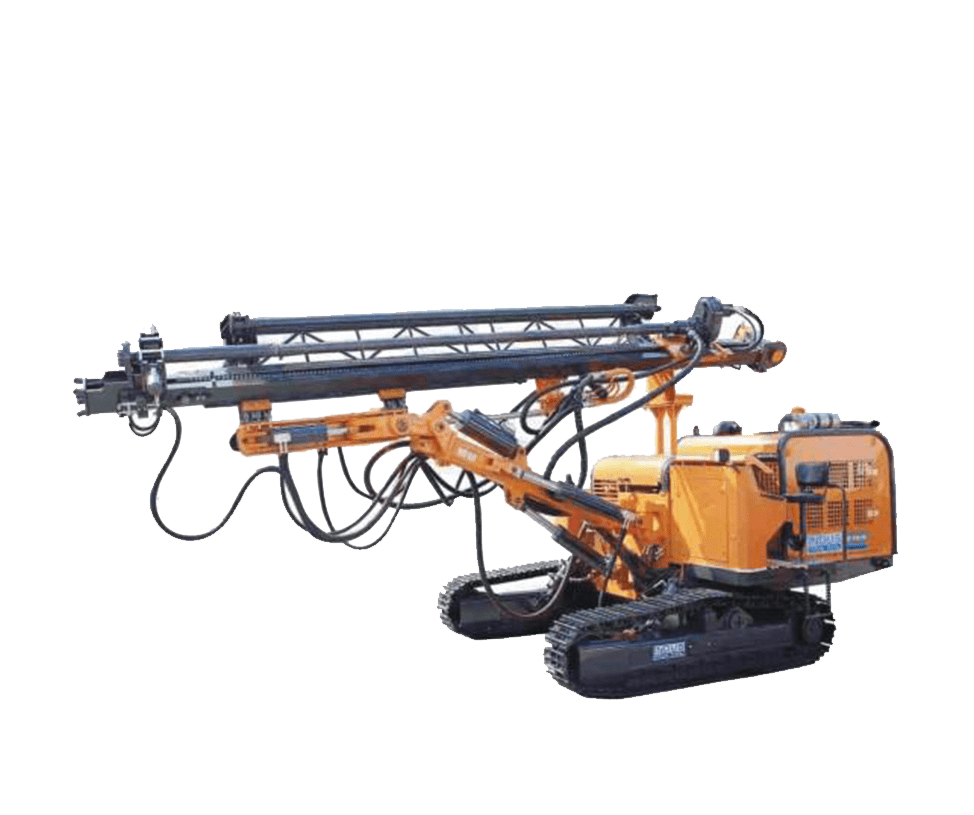

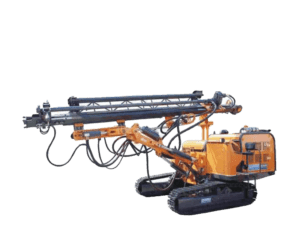

IRB 220 HD

Feature:

  • IRB 220 is powerful Hydraulic self-propelled drill having on board engine and comes in different version suitable to job site requirements.
  • Ergonomically designed Control Panel
  • Crimped type Hydraulic Hoses
  • Heavy Duty Square Boom

Specification:

Model

IRB 220 SH

IRB 220 HD

Working Weight (Approx)

7200

6500

DTH / Top Hammer

DTH

DTH

Hole Daimeter

115

200-300

Rod Length

3660 (12 ft )

3000 (10ft )

Hole Depth

15/48

3/10 Single

Recommended Air Compressor

650/250, 550/250, 500/175

650/200, 900/300

Engine

50(HP)

50 (HP)

Site Images
