Description | Unit of Measure | Specifications |

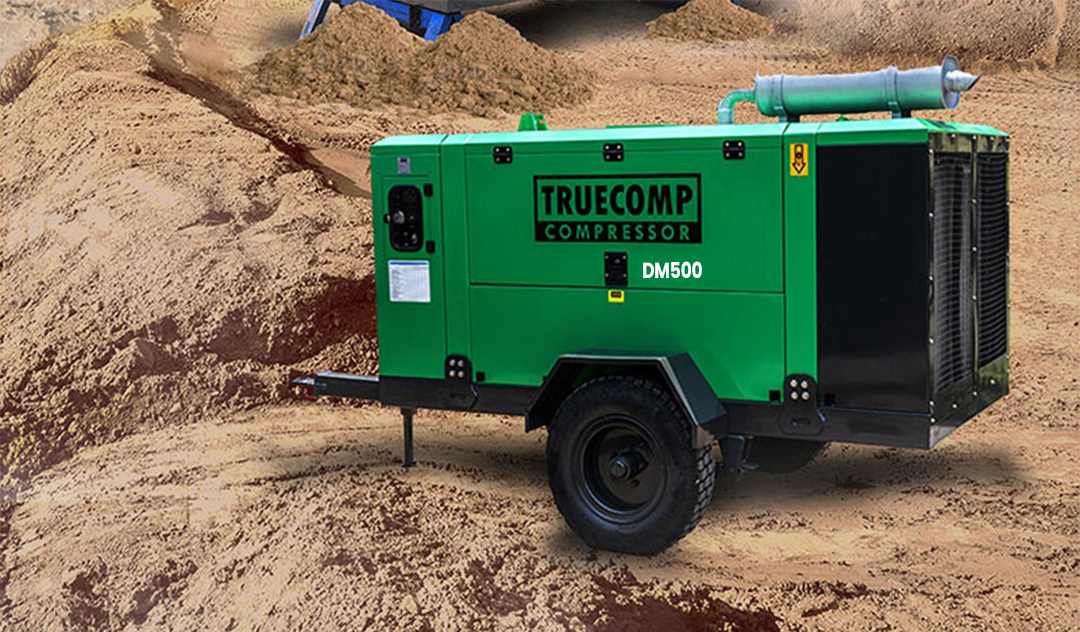

MODEL | - | DM500 |
Free Air Delivery | cfm (m3/min) | 500 |
Normal Working Pressure | psi (kg/cm^2) | 175 |
Ambient Temperature Range | °C | 5 - 52 |
Compressor oil fill capacity (Refill) | Liters | 40 |
Fuel Tank | Liters | 250 |
Air outlet valve with trolley (Wheeled) | - | 2 nos of 3/4" & 1 no of 2" |
Air outley valve without trolley (Skid/ Rig) | - | 1 no of 2" |
Engine | ||
Engine make | - | Ashok leyland |
Rated engine power | HP(kW) | 170(125) |
Safety | ||
Emergency stop | Yes / No | Yes |
High discharge air temperature | Yes / No | Yes |
High Coolant Temperature Trip | Yes / No | Yes |
Low engine lube oil pressure | Yes / No | Yes |
Hot surface protection | Yes / No | Yes |
Dimension and others | ||
Overall dimention with trolley (Wheeled) | L X B X H, MM | 4080x1960x2200 |
Overall dimention without trolley (Skid/ Rig) | L X B X H, MM | 2850 X 1420 X 1650 |
Dry weight of the Package with trolley (Wheeled) | kg | 3000 |
Dry weight of the Package without trolley (Skid/ Rig) | kg | 2700 |
Mounting type | Mounting | Wheeled/Skid |
